Applications and Characteristics of Choweyarmor Metal Armor Plate

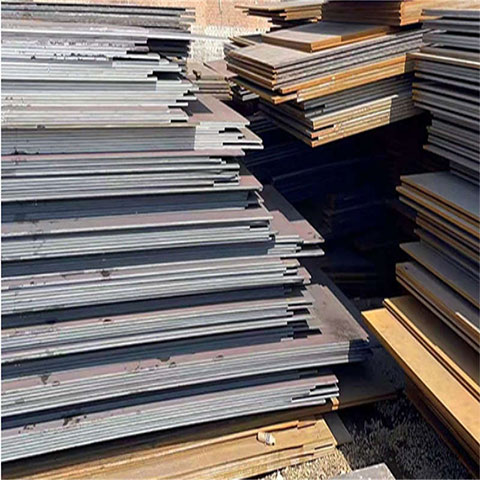

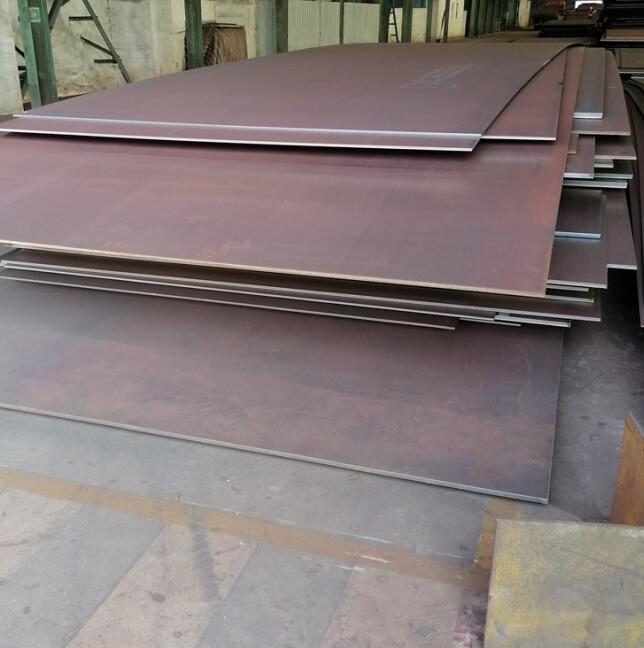

  • Choweyarmor steel armor plate is some sort of high-hardness ballistic metal, which comes in two types: commercial and military.


    Commercial/Non-Military Applications

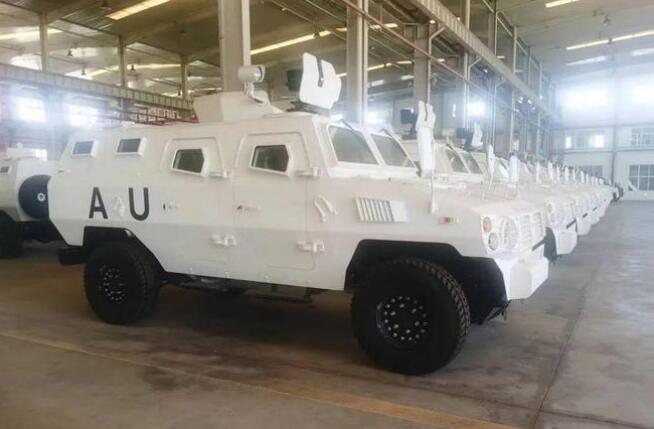

    Choweyarmor steel armor plates may be used to manufacture cash transportation vehicles, personal armored vehicles, riot shields, body armor, door panels, safe rooms, safeguard booths, financial institution counters, fight vehicles, submarines, landing create, anti-smuggling boats, helicopters, etc.



  • Four characteristics of armor metal plates

    1. Carefully designed alloy composition: low-alloy micro-alloying maximizes performance and ideal process performance.

    2. Refined recycleables: repeatedly processed outside and inside the furnace; dangerous gases and impurities are fried to the very least; can be welded and cold-bent.

    3. Precise hot-rolled plate form: minimal thickness tolerance; maximum two-way flatness.

    4. Self-controlled apply quenching: the microstructure is okay and the hardness is evenly distributed.

    Chemical substance composition of armor steel plate (%):

    C: 0.35. Si: 0.70. Mn: 1.70. P: 0.020. S: 0.015. Cr: 1.20. Ni: 0.80. Mo: 0.60.

    B: 0.004 (Track alloy elements can be added as needed: Ti, Nb, V, etc.)


    Yield power: Rp0.2 (N/mm2): 1300. Tensile strength Rm (N/mm2): 1650

    Elongation A5%: 8. Impact power t-40℃J:20. Hardness HB: 470-530

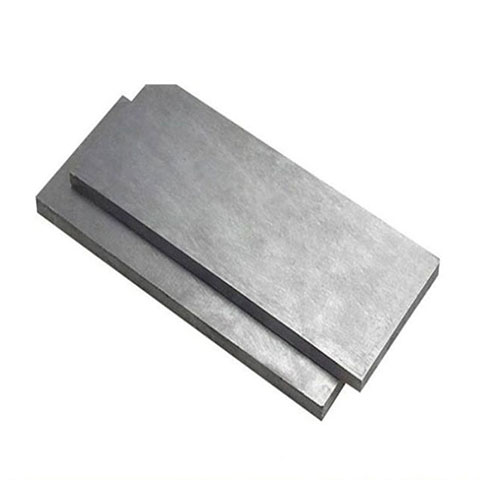

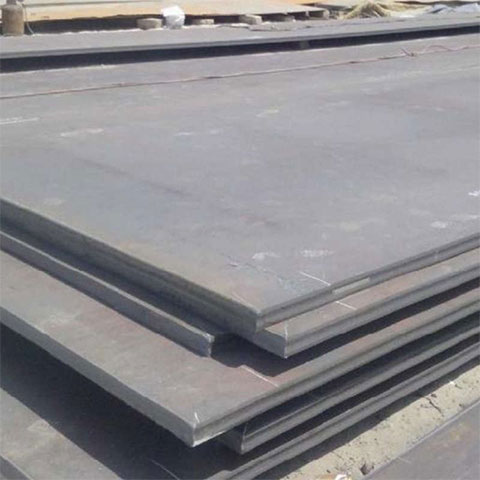

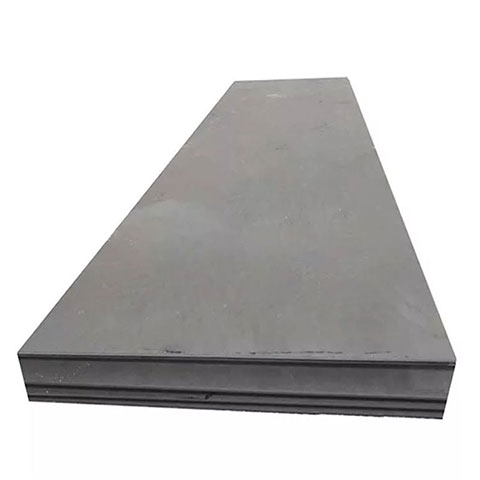

  • Choweyarmor also offers ballistic armor steel plates of different thicknesses, product details are the following

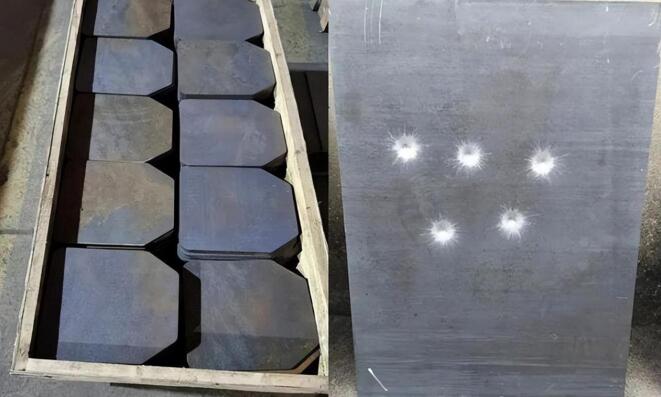

  • Ballistic protection: 85-type 7.62mm sniper rifle with 53-type 7.62mm normal ammunition
    Flatness Tolerances according to EN 10 029 Class N (type L)
    Thickness: 6.5mm, 8.0mm, 10.0mm, support customization
    Size: support customization

  • Ballistic protection: Type 95 5.8mm rifle with 87 type 5.8mm normal ammunition, M16 5.56mm automatic rifle with SS109 rifle ammunition
    Flatness Tolerances according to EN 10 029 Class N (type L)
    Thickness: 6.5mm, 8.0mm, 10.0mm, support customization
    Size: support customization

  • Ballistic protection: 7.62 x 54 API (stanag level 3)
    Flatness Tolerances according to EN 10 029 Class N (type L)
    Thickness: 6.5mm, 8.0mm, 10.0mm, support customization
    Size: support customization

  • Ballistic protection: 7.62 x 54 API (stanag level 3)
    Flatness Tolerances according to EN 10 029 Class N (type L)
    Thickness: 6.5mm, 8.0mm, 10.0mm, support customization


  • Manufacturing procedure for armored bulletproof steel plates

    1. Welding performance: The carbon exact carbon copy of metal is between 0.50-0.62, indicating that steel type has good welding performance. Heat insight during welding is approximately 1.5-2.5KJ/mm. Welding materials can also produce high-quality welding workpieces.

    2. Chilly bending: Follow the next factors to avoid splits during chilly bending.

    3. The relationship between your bending internal radius and the metal plate thickness: Steel plate thickness mm: <6. Bending angle <90°, indenter radius R/steel plate thickness t, R/t: 4.0. Pivot spacing w/metal plate thickness t, W/t: 10.0

    Metal plate thickness mm: ≧6 <20. Bending position <90°, indenter radius R/steel plate thickness t, R/t: 8.0. Pivot spacing w/metal plate thickness t, W/t: 12.0
