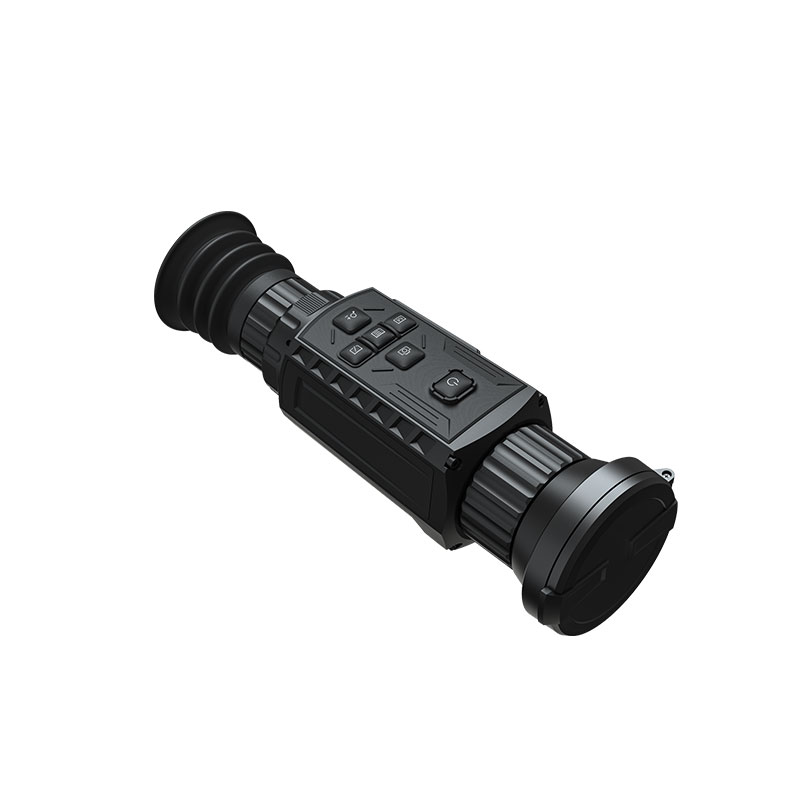

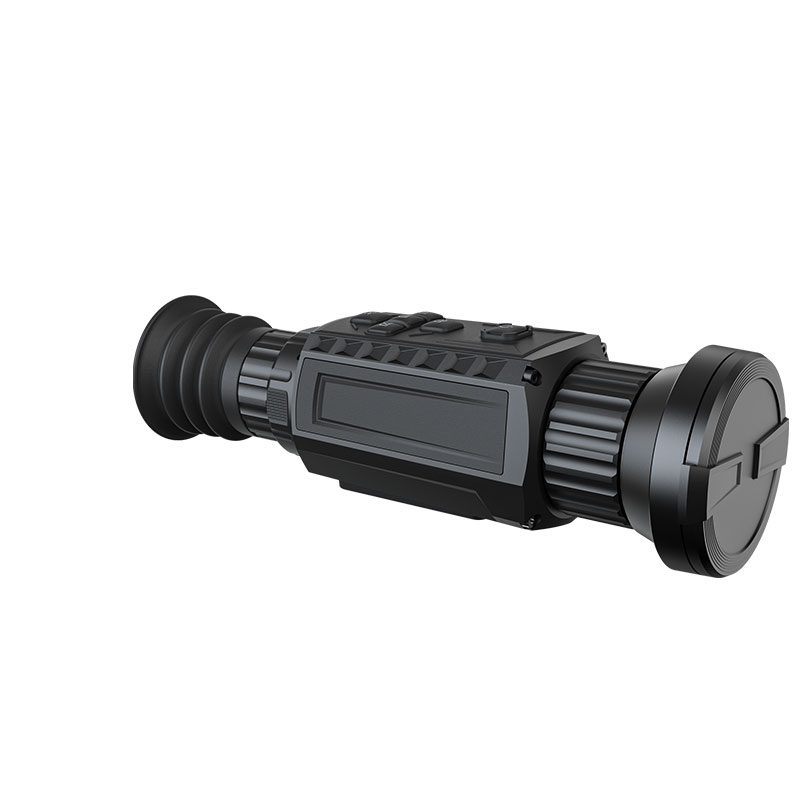

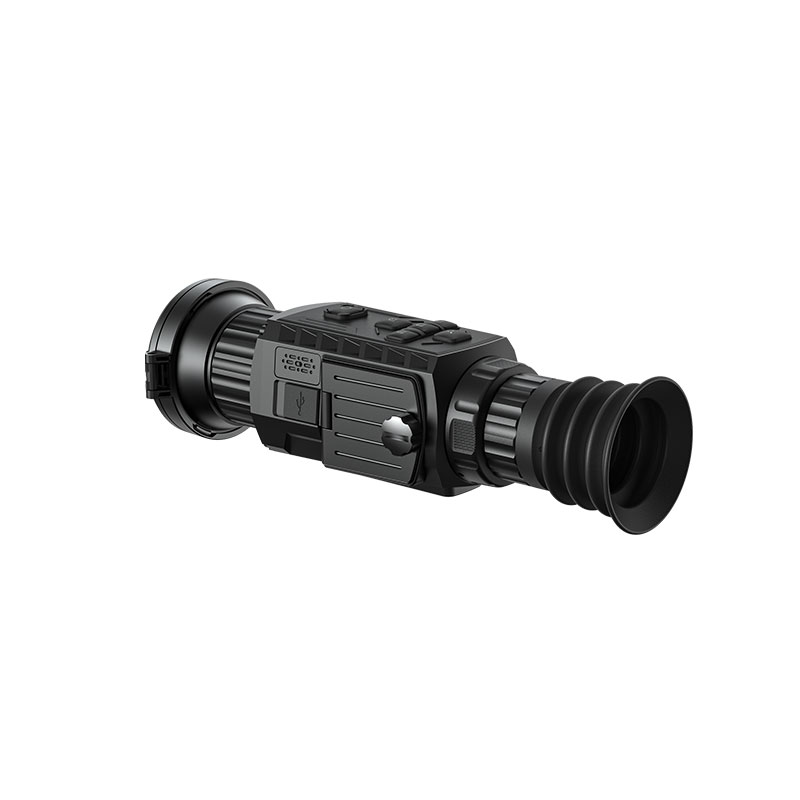

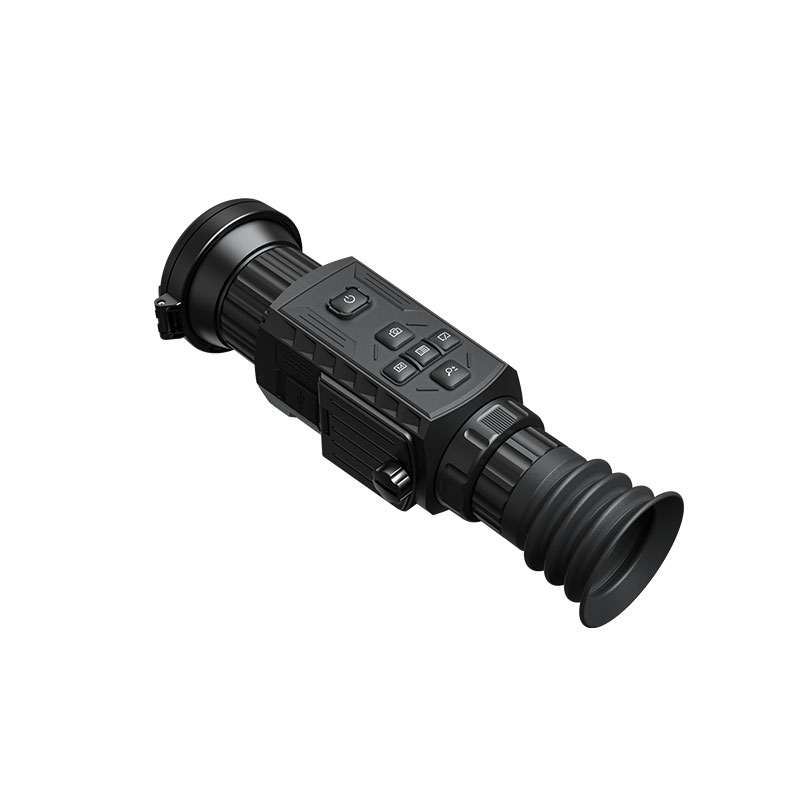

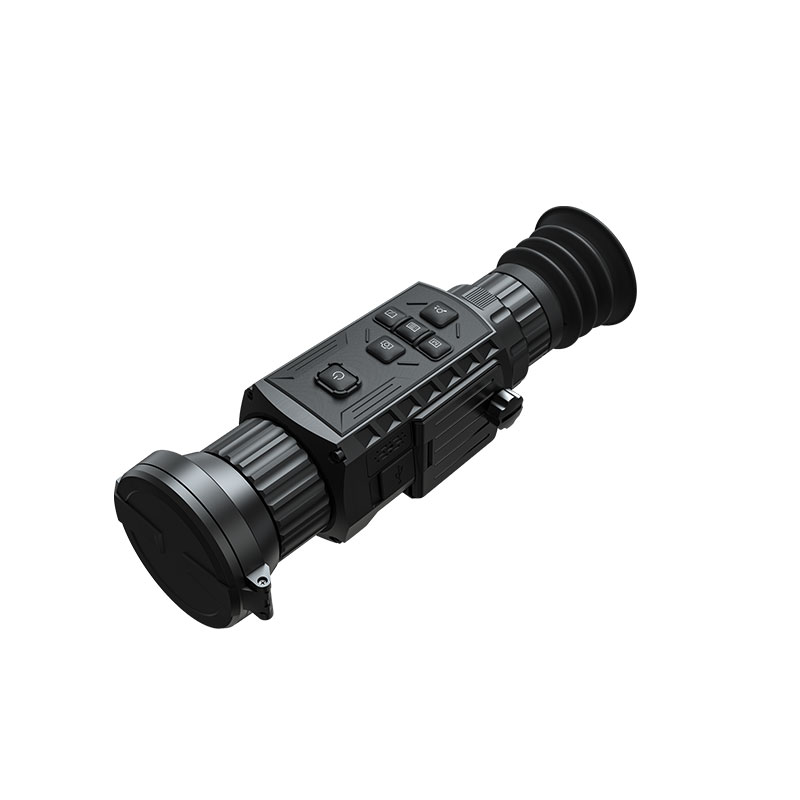

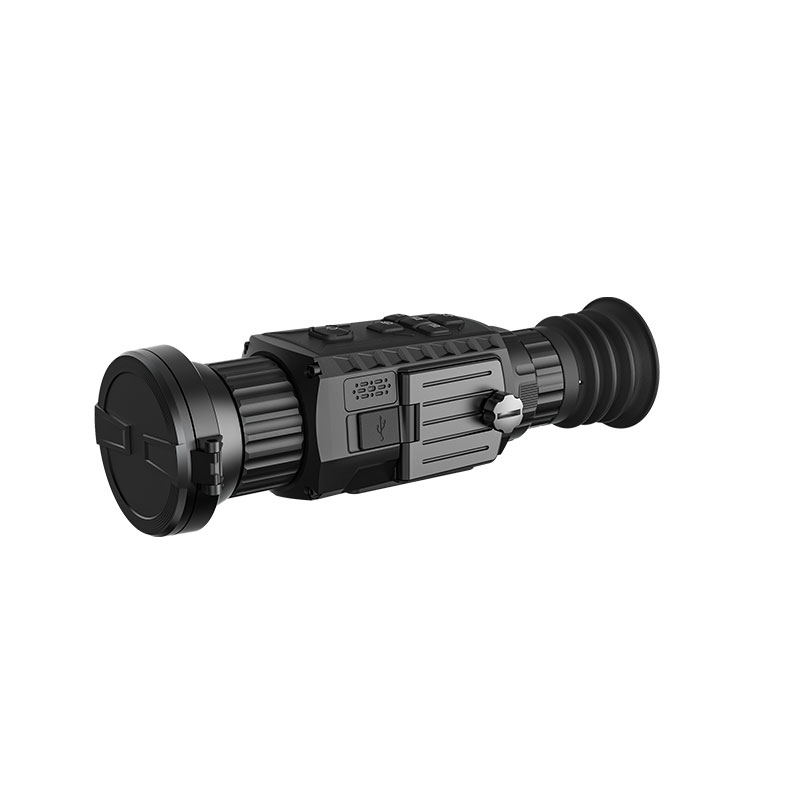

Outdoor 12 Micron Uncooled VOX Detector Thermal Monocular

Home > TACTICAL ACCESSORIES > Thermal Monocular

Item No.: TM42

Color

* ChoweyArmor ready to provide Bulletproof Vest services. Please indicate your needs in the shopping cart or contact us.

Specification

Outdoor 12 Micron Uncooled VOX Detector Thermal Monocular

MODEL NO.	TM 42-19C	TM 42-25C	TM 42-19	TM 42-25
MAGE SENSOR	Vanadium Oxide Uncooled Detector
MAX.RESOLUTION	256×197
FRAME RATE	25 Hz
PIXEL INTERVAL	12μm
RESPONSE WAVEBAND	8~14μm
NETD	＜ 35 mK（25℃，F#=1.0）
FOCAL LENGTH	19 mm	25 mm	19 mm	25 mm
DETECTION RANGE	950 m	1200 m	950 m	1200 m
IFOV	0.63 mrad	0.48 mrad	0.63 mrad	0.48 mrad
FIELD OF VIEW	9.24°x7.08°	7.03°x5.39°	9.24°x7.08°	7.03°x5.39°
MIN.FOCUSING DISTANCE	1 M	1.5 M	1 M	1.5 M
APERTURE	F1.0
MAGNIFICATION	1X	1X	2.5X	3.25X
DISPLAY	1024×768,0.39 inch,OLED
MAGE MODE	Black Hot,White Hot,Red Hot,Fusion
EXIT PUPIL	22 mm		6 mm
EYE RELIEF	10 mm		45 mm
DIOPTER (RANGE)	/		-5D to 3D
VIDEO	Support video recording
PHOTOGRAPH	YES
SLEEP MODE	YES
UNIFORMITY CORRECTION	Automatic/external correction
STORAGE	Built-in EMMC[64 GB]
PIP	YES
DPC	YES
HOTSPOT	YES
ELECTRONIC ZOOM	1X,2X,4X,8X
HOTSPOT TRACKING	YES
CROSS RETICLE	YES
RANGING FUNCTION	NO
BATTERY TYPE	2 X CR123A/RCR123A replaceable batteries
BATTERY WORKING TIME	7 h (25℃, hotspot off)
BATTERY CAPACITY DISPLAY	YES
REVERSE CHARGING	YES
OVERVOLTAGE PROTECTION	YES
TYPE-C POWER SUPPLY	5V/2A supports external power supply
OPERATING TEMPERATURE/HUMIDITY	-20 ~55℃ (-4°F ~131°F)
PROTECTION LEVEL	IP67
VIBRATION SHOCK	750g/1ms
PORT	TYPE-C
