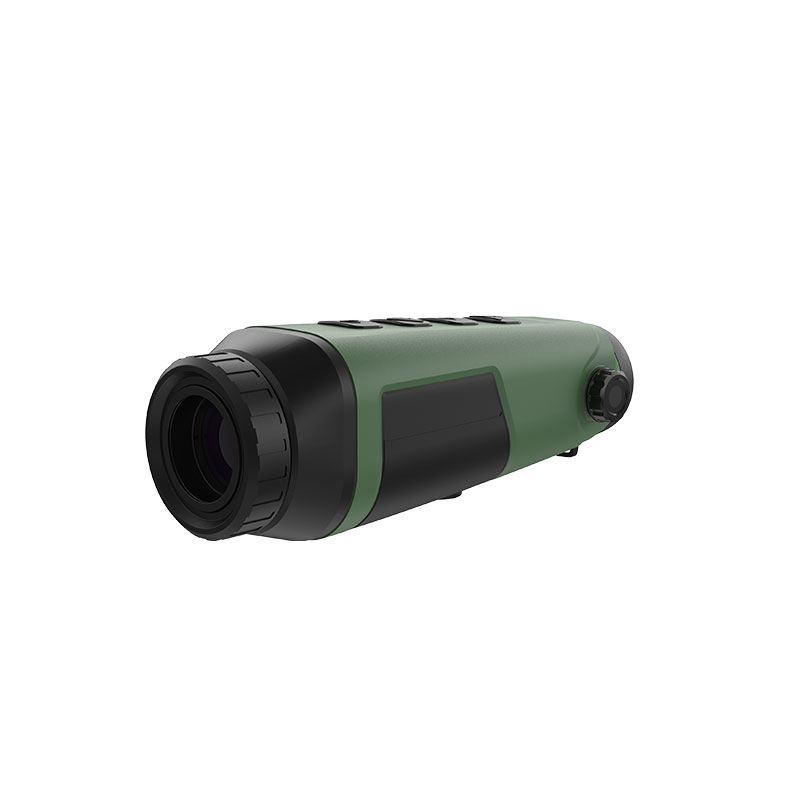

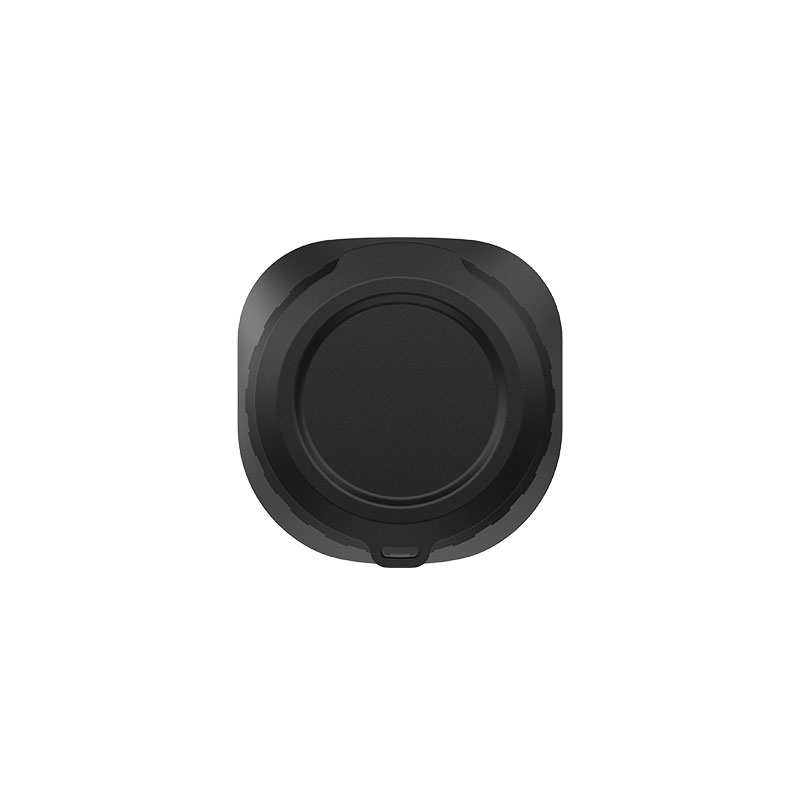

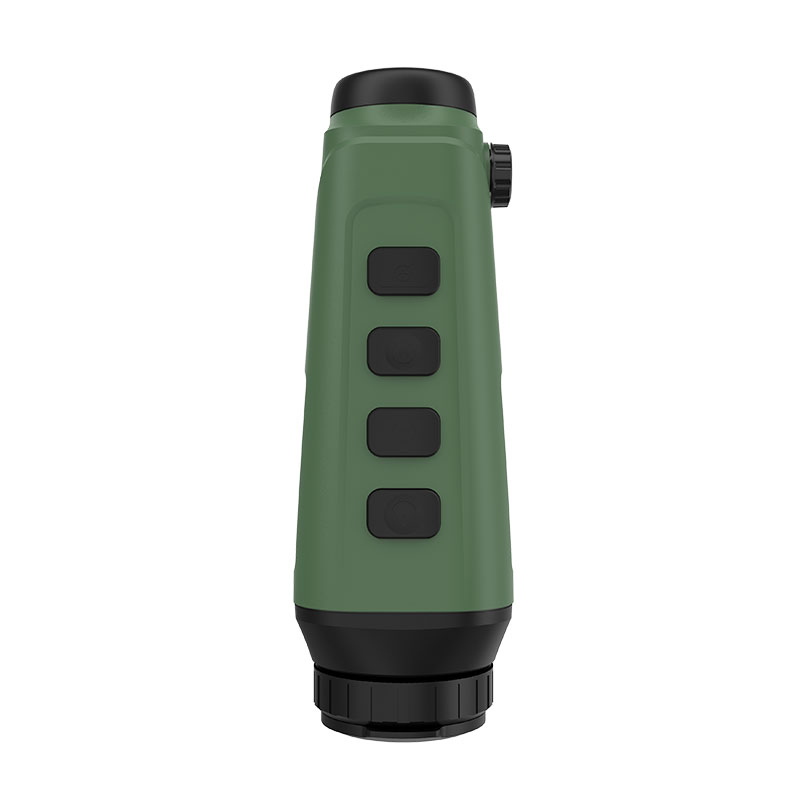

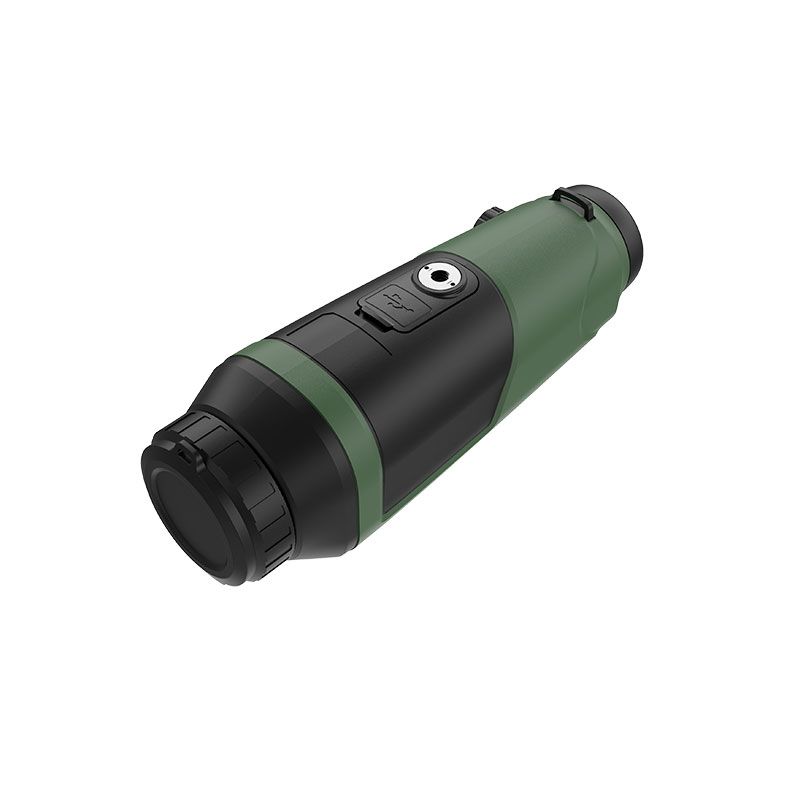

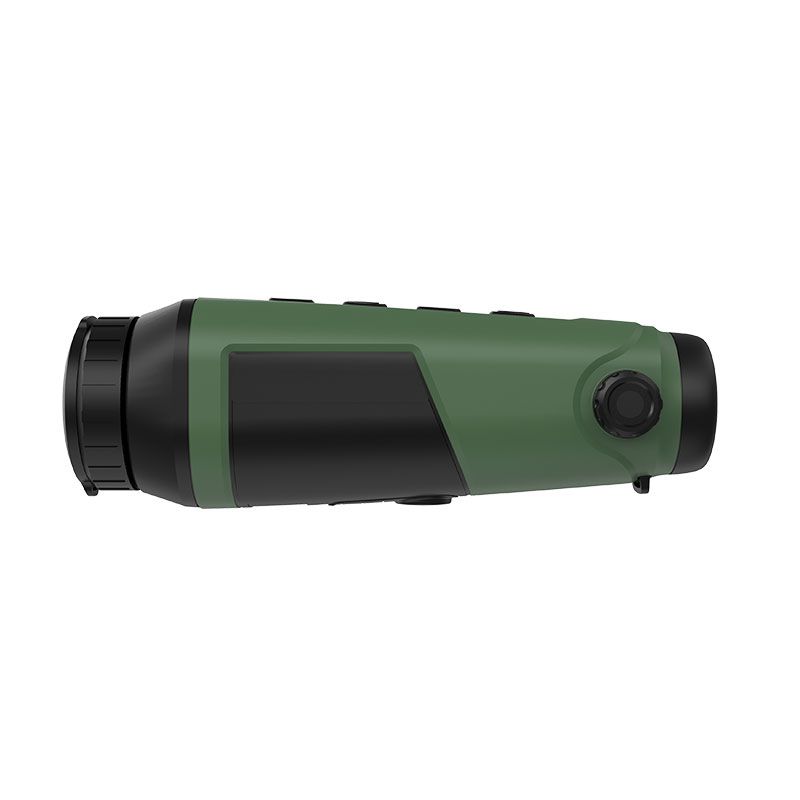

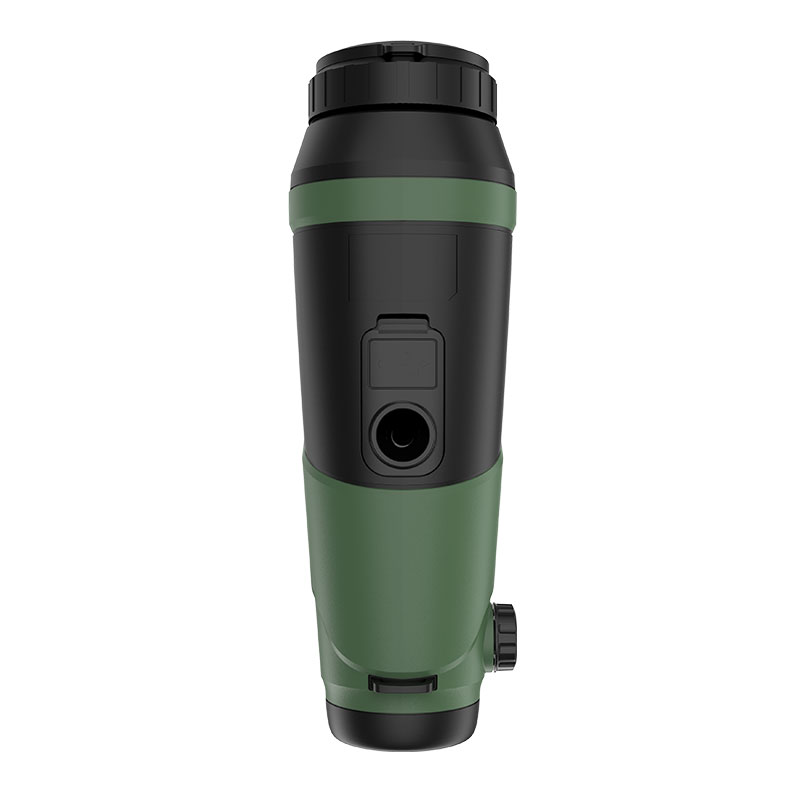

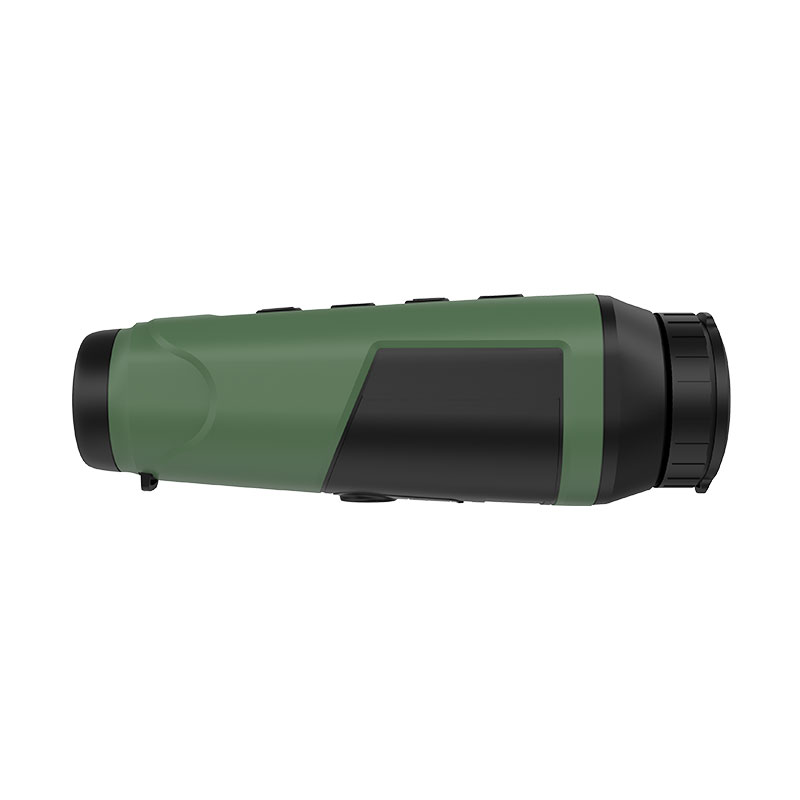

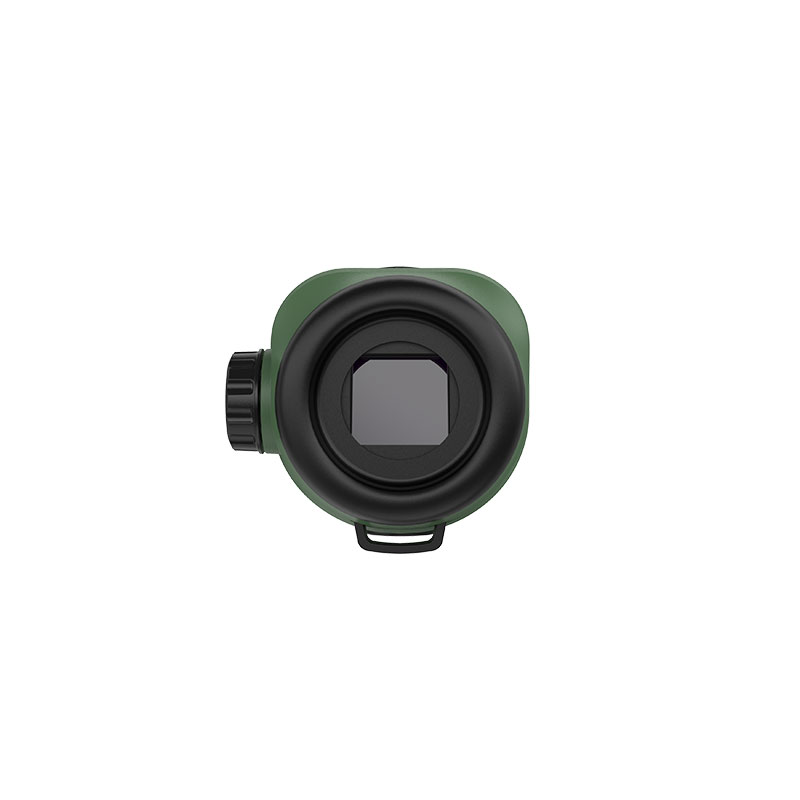

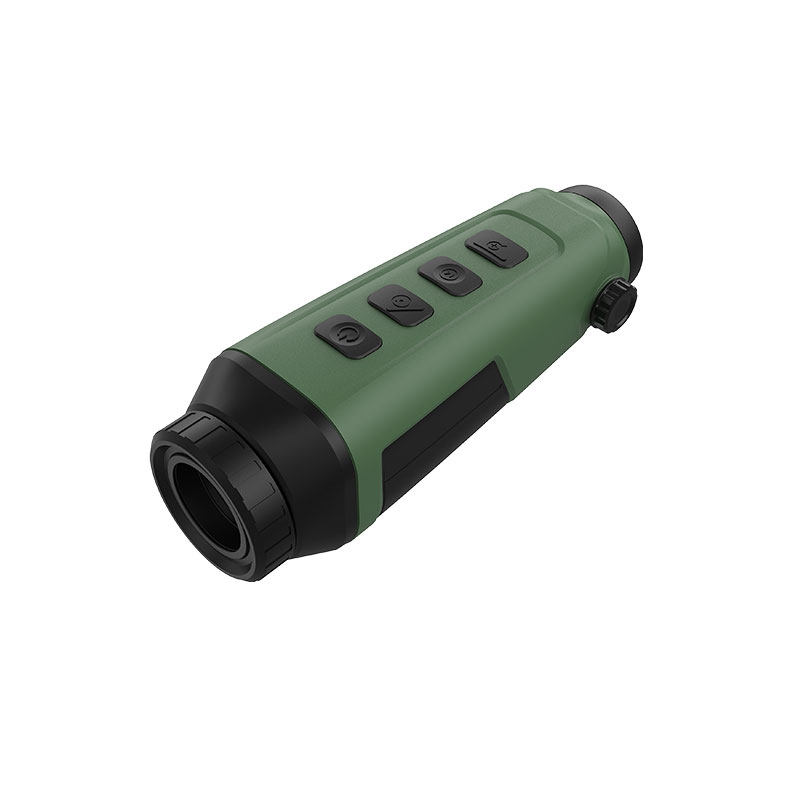

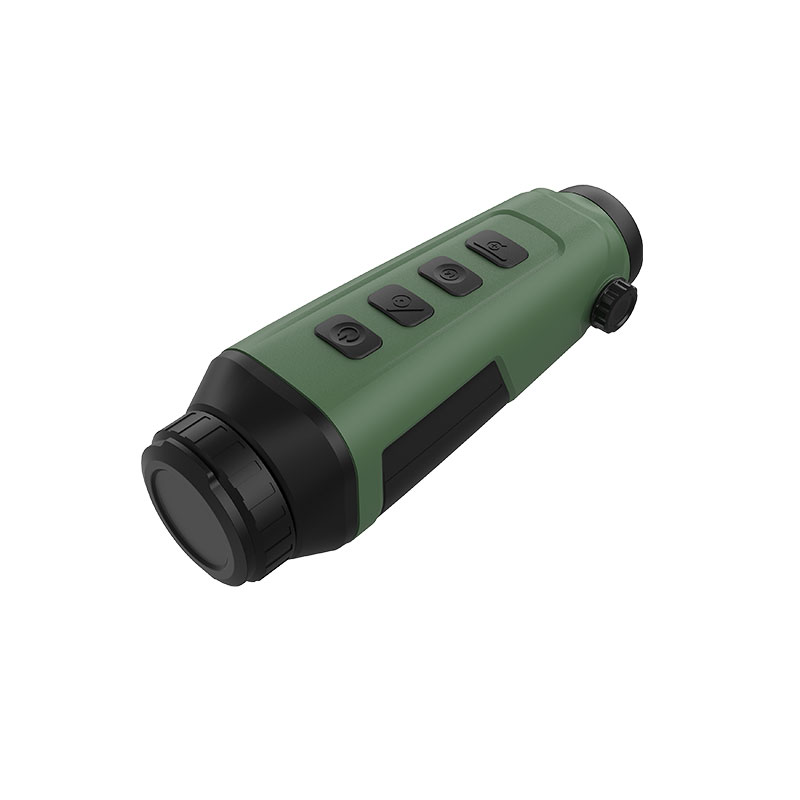

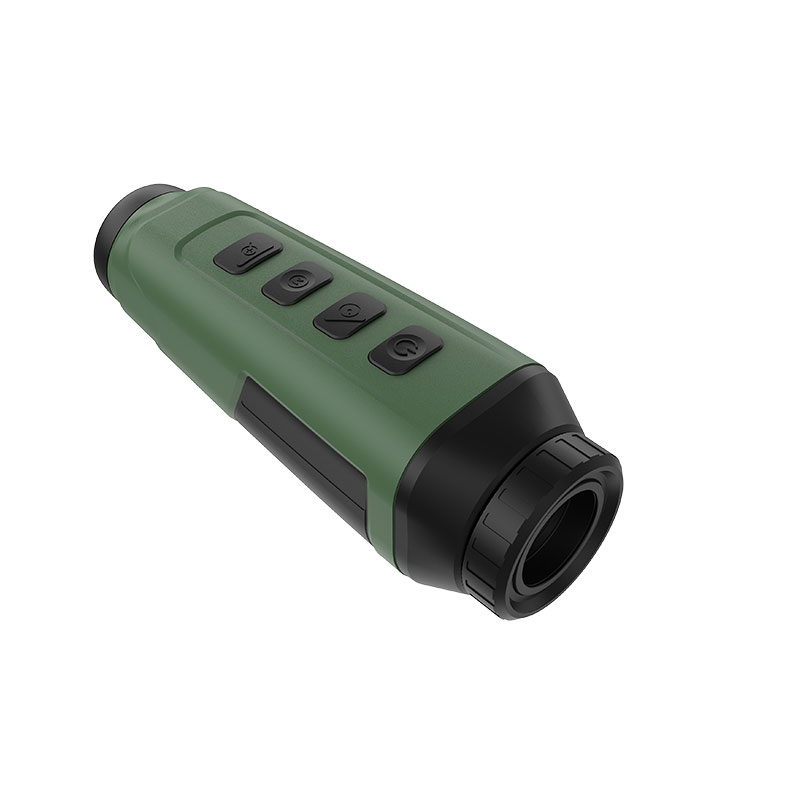

Outdoor TM13-19XG/W display Handheld Thermal Monocular Camera

Home > TACTICAL ACCESSORIES > Thermal Monocular

Item No.: TM13-19XG.W

TM13-19XG/W handheld thermal monocular camera is equipped with a 384X288 infrared detector and a 1280X960 LCOS display. It supports functions of observation, Wi-Fi hotspot, and soon. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. Themonocular is mainly applied to scenarios such as hunting, hiking, law enforcement, searching and rescuing, and etc.

Color

* ChoweyArmor ready to provide Bulletproof Vest services. Please indicate your needs in the shopping cart or contact us.

Specification

Outdoor TM13-19XG/W display Handheld Thermal Monocular Camera Features
1. High sensitivity thermal module with 384 × 288 resolution
2. NETD < 35 mk (@25°C, F#=1.0)
3. Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
4. 1280 × 960 resolution 0.4-inch OLED display
5. Built-in rechargeable Li-ion battery
6. Up to 7 hours continuous operation
7. Compact and lightweight

Thermal Module
Image Sensor	VOx Uncooled Focal Plane Arrays
Max. Resolution	384 × 288
PIXEL INTERVAL	12μm
RESPONSE WAVEBAND	8~14μm
NETD	＜ 35 mK（25℃，F#=1.0）
Lens (Focal Length)	15 mm
Field of View	17.5°× 13.1°(H × V)
Aperture	F1.0
Magnification	1.47 to 11.76
Digital Zoom	1 ×, 2 ×, 4 ×, 8 ×
Image Display
Frame Frequency	50 Hz
Monitor	0.4 inch, LCOS, 1280 × 960
Palettes	Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode	Auto, Manual
Smart Function
Wi-Fi HotSpot	Yes
Detection Range	708 m
Standby Mode	Yes
System
Storage	Built-in memory module (8 GB)
Record Video	Yes
Capture Snapshot	Yes
Power Supply
Battery Type	Lithium battery
Battery Operating Time	7.5 hours continuous running with Wi-Fi hotspot function off (@25°C) 6 hours continuous running with Wi-Fi hotspot function on (@25°C)
Battery Capacity Display	Yes
General
Eye Point Distance	15 mm
Work Temperature/Humidity	-20°C to 55°C (-4°F to 131°F)
Power	5 VDC/2 A, 1.5 W, Type-C Interface
Protection Level	IP67
Dimension	171 mm × 57.7 mm × 57 mm (6.73" inch × 2.27" inch × 2.24" inch)
Weight	< 330 g (0.73 lb)

How much the transportation freight of samples?

The freight depends on the weight and packing size and destination.

About the sample what is the cost of transportation?

The freight depends on weight, packing size and your country or region.

Are you manufactory or trade company?

ChoweyArmor are the Manufactory specialized in the police equipment industry.

Can we have our Logo or company name to be printed on your products?

Sure. Your Logo could be printed on your products by Hot Stamping.

Do you have stock ?

Most of the products are under regular production, ChoweyArmor can make delivery at any time.

How can order the products without any acknowledge of import ?

ChoweyArmor could arrange you shipping or air or express for you and delivery

How long can I expect to get the sample?

The samples will be ready for delivery in 3-5 days. The samples will be sent to you by DHL express

How long is the sample time of the sample? Does the sample fee bear by who?

Proofing is usually 5-7 working days. The sample fee is bear by the customer, but if you place an order after, ChoweyArmor can return the sample fee.

How to order?

Please send us your purchase order by Email or call us sales line, ChoweyArmor will make the quotation to you,if anything is OK, ChoweyArmor can send you our invoice with our stamp,you sign and stamp in our invoice,the order starting,you pay order amount, ChoweyArmor will start production.

How to control quality?

All the raw materials by IQC Incoming Quality Control before production.

Why Choose ChoweyArmor

ChoweyArmor provide the highest quality products for foreign government departments.

The production covers bulletproof equipment, anti-riot equipment and tactical equipment, ChoweyArmor has advanced production equipment and a strong technical team to provide professional services and consulting for each customer

Need Support?Contact Us Now

Send Your Inquiry

*ChoweyArmor respect your confidentiality and all information areprotected.

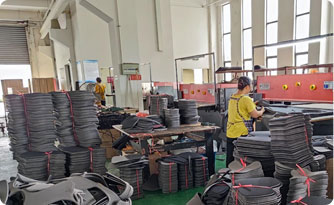

Professional Assembly
