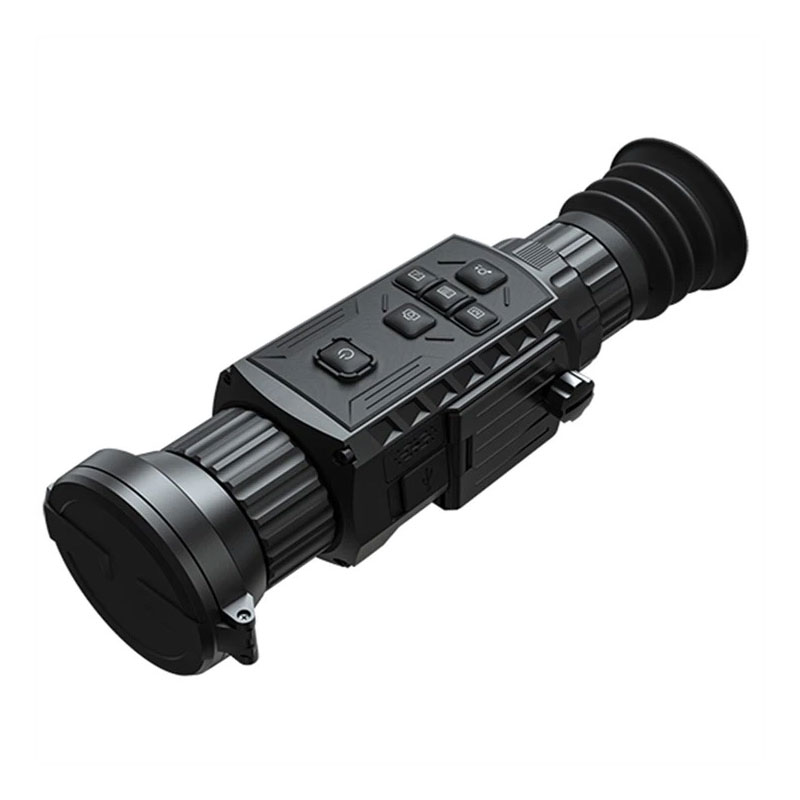

Outdoor Police HD Thermal Image Scope

Home > TACTICAL ACCESSORIES > Thermal Monocular

Item No.: TM46-50XG.W

TM46-50XG/W Thermal Image Scope has 640×512 thermal detector and 1024×768 OLED monitor,which provides clear image under harsh environment conditions like darkness,fog,smoke,dust,rain,snow,wood, camouflage,etc.The scope is mainly applied to scenarios such as patrolling,and hunting.

Color

* ChoweyArmor ready to provide Bulletproof Vest services. Please indicate your needs in the shopping cart or contact us.

Specification

Characteristic

Outdoor Police HD Thermal Image Scope Features:
1.640×512 thermal resolution,high sensitivity detector,NETD<35 mK(25℃,F#=1.0)
2.1024×768 resolution 0.39-inch OLED display
3.lmage processing technology:Adaptive AGC,DDE,3D DNR
4.support video recording,audio recording and snapshot,built-in EMMC [64 GB]
5.Supports digital zoom and cursor function,palettes of color adjustable
6.Up to 6 hours continuous working
7.Recoil-activation recording

THERMAL MODULE
MAGE SENSOR	Uncooled Focal Plane Array
MAX.RESOLUTION	640×512
FRAME RATE	50 Hz
PIXEL INTERVAL	12 μm
RESPONSE WAVEBAND	8μm to 14μm
NETD	Less than 35 mk(25℃,F#=1.0)
LENS (FOCAL LENGTH)	50 mm
DETECTION RANGE	2500 m
FIELD OF VIEW	8.8°×7.05°
MIN.FOCUSING DISTANCE	5 m
APERTURE	F1.0
MAGNIFICATION	2.6×
MAGE DISPLAY
DISPLAY	1024×768,0.39 inch,OLED
MAGE MODE	Black Hot,White Hot,Red Hot,Fusion
EXIT PUPIL	6 mm
EYE RELIEF	45mm
DIOPTER (RANGE)	-5 D to 3 D
SYSTEM
DIGITAL Z00M	1X,2X,4X,8X
CAPTURE SNAPSHOT	Yes
RECORD VIDEO	0n-board video recording
STANDBY MODE	Yes
STORAGE	Built-in EMMC(64 GB)
PIP	Yes
DPC	Yes
HOTSPOT	Yes
UNIFORMITY CORRECTION	Auto,External Correction
HOT TRACK	Yes
RETICLE	Yes
POWER SUPPLY
BATTERY TYPE	One Rechargeable Lithium battery
BATTERY OPERATING TIME	Up to 6 hours continuous running(@25°℃,Wi-Fi and CVBS off)
BATTERY CAPACITY DISPLAY	Yes
ANTI-REVERSE BATTERY CONNECTION	Yes
OVERVOLTAGE PROTECTION	Yes
TYPE-C POWER SUPPLY	5 VDC/2 A,USB Type-C interface 3 Supports external power supply
BATTERY TYPE	One Rechargeable Lithium battery
GENERAL
WORK TEMPERATURE/HUMIDITY	-20℃ to 55℃[-4°F to 131°F]
PROTECTION LEVEL	IP67
DIMENSION	200.38 mm×66.32 mm×87.10 mm
WEIGHT	<490 g without eyepiece and batteries
PORT	Type-C

Lub koob yees duab ntawm tes thermal monocular no tau nruab nrog infrared detector thiabLCOS zaub. Nws txhawb kev ua haujlwm ntawm kev soj ntsuam, ntsuas qhov deb, Wi-Fi kub qhov chaw, thiab lwm yam. Lub siab-rhiab heev built-in thermal detector muab koj pom meej txawm nyob rau hauv tag nrho qhov tsaus ntuj. Lub monocular feem ntau yog siv rau cov xwm txheej xws li yos hav zoov, hiking, tub ceev xwm, nrhiav thiab cawm, thiab lwm yam.
