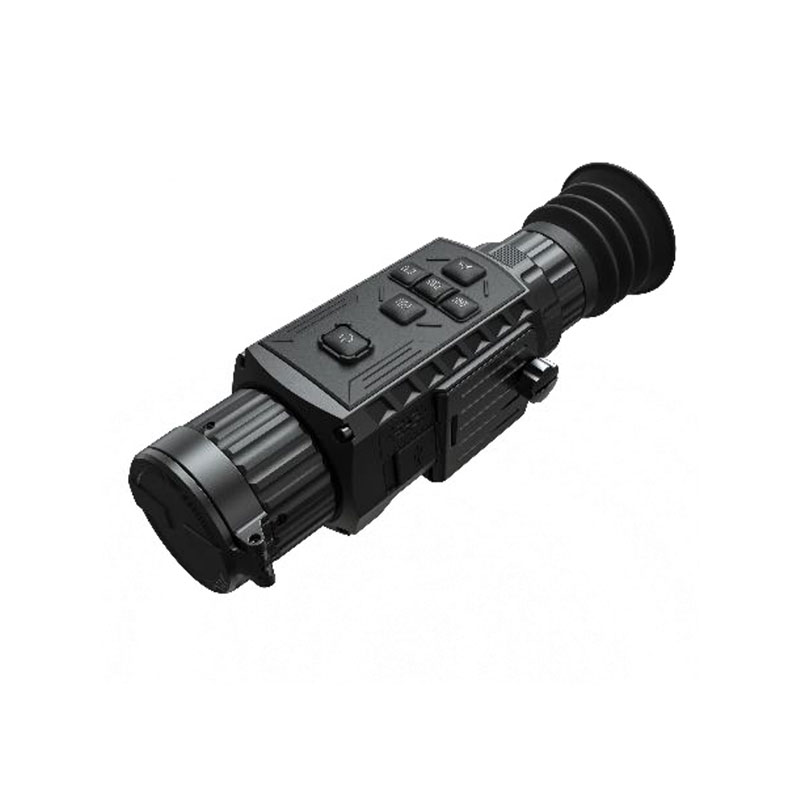

Outdoor Tactical Police Thermal Image Scope

Home > TACTICAL ACCESSORIES > Thermal Monocular

Item No.: TM43-35XG_W

Color

* ChoweyArmor ready to provide Bulletproof Vest services. Please indicate your needs in the shopping cart or contact us.

Specification

Outdoor Tactical Police Thermal Image Scope Features:
1. 384×288 thermal resolution,high sensitivity detector,NETD<35 mK (25°C,F#=1.0)
2. 1024×768 resolution 0.39-inch OLED display
3. lmage processing technology:Adaptive AGC,DDE,3D DNR
4. Support video recording,audio recording and snapshot,built-in EMMC (64 GB) · Supports digital zoom and cursor
function,palettes of color adjustable
5. Up to 8 hours continuous working
6. Recoil-activation recording

THERMAL MODULE
MAGE SENSOR	Uncooled Focal Plane Array
MAX.RESOLUTION	384×288
FRAME RATE	50 Hz
PIXEL INTERVAL	12 μm
RESPONSE WAVEBAND	8μm to 14μm
NETD	Less than 35 mk(25℃,F#=1.0)
LENS (FOCAL LENGTH)	35 mm
DETECTION RANGE	1800 m
FIELD OF VIEW	7.53°×5.65°
MIN.FOCUSING DISTANCE	3.5 m
APERTURE	F1.0
MAGNIFICATION	3.0×
MAGE DISPLAY
DISPLAY	1024×768,0.39 inch,OLED
MAGE MODE	Black Hot,White Hot,Red Hot,Fusion
EXIT PUPIL	6 mm
EYE RELIEF	45 mm
DIOPTER (RANGE)	-5 D to 3 D
SYSTEM
DIGITAL Z00M	1X,2X,4X,8X
CAPTURE SNAPSHOT	Yes
RECORD VIDEO	0n-board video recording
STANDBY MODE	Yes
STORAGE	Built-in EMMC(64 GB)
PIP	Yes
DPC	Yes
HOTSPOT	Yes
UNIFORMITY CORRECTION	Auto,External Correction
HOT TRACK	Yes
RETICLE	Yes
POWER SUPPLY
BATTERY TYPE	Rechargeable Applicable type: CR123A,RCR123A
BATTERY OPERATING TIME	Up to 8 hours continuous running(@25°C,Wi-Fi and CVBS off)
BATTERY CAPACITY DISPLAY	Yes
ANTI-REVERSE BATTERY CONNECTION	Yes
OVERVOLTAGE PROTECTION	Yes
TYPE-C POWER SUPPLY	5 VDC/2 A,USB Type-C interface 3 Supports external power supply
BATTERY TYPE	Rechargeable Applicable type: CR123A,RCR123A
GENERAL
WORK TEMPERATURE/HUMIDITY	-20℃ to 55℃[-4°F to 131°F]
PROTECTION LEVEL	IP67
DIMENSION	207.1 mm×61.9 mm×68.5 mm
WEIGHT	<440 g without eyepiece and batteries
PORT	Type-C
